AOSV Final Project Report

A.Y. 2020/2021
repository

Introduction

The goal of the project was to implement User Mode thread Scheduling mechanism for the Linux distribution, inspired by the User-mode scheduling (UMS) implementation available in the Windows kernel [1]. UMS is a mechanism that allows applications/programs in the user mode to schedule their own threads without involving the kernel/system scheduler. The main goal and advantage is that thread switching in user mode is “more efficient than thread pools for managing large numbers of short-duration work items that require few system calls.” [2].

Design and Implementation

The main components of the UMS mechanism in this implementation are:

ums thread, the scheduler that determines the next worker thread to be scheduled and executed
worker thread, the short-duration work tasks of the application
completion list, the list of worker threads to be associated with scheduler

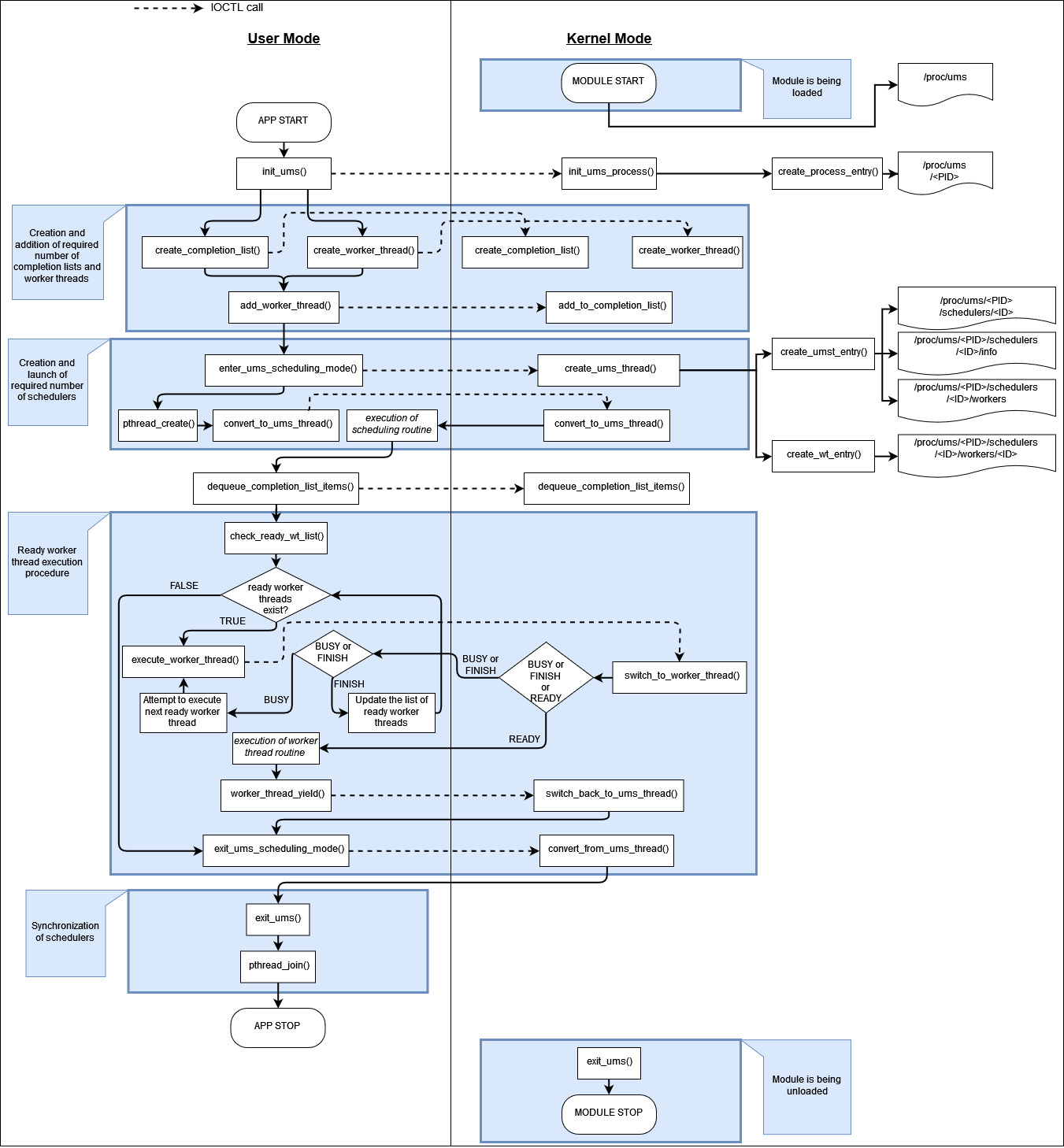

The execution flow is shown below: exec flow

As shown in the flow, in order to begin utilization of UMS mechanism the application in user space needs to initialize it by init_ums(). It makes IOCTL call to invoke init_ums_process() which creates necessary structures associated with the application in kernel space. After that, UMS mechanism is enabled for this application and user can create completion lists and worker threads. This is done with the help of create_completion_list() and create_worker_thread(). Worker threads are built with task routine and required parameters, and completion lists are filled with worker threads by add_worker_thread() manually. The next important element is a scheduling routine which is a scheduling function. Once the completion lists are created and filled with worker threads, a scheduling routine needs to be created and together with id of the completion list passed to enter_ums_scheduling_mode() to invoke create_ums_thread() in kernel space which creates corresponding scheduler context. Then enter_ums_scheduling_mode() invokes pthread_create() [5] to start new thread in the calling process environment. The new thread starts the execution of the convert_to_ums_thread() which converts itself into scheduler. This is done convert_to_ums_thread() in kernel space which performs context switching. From that point pthread is converted to scheduler thread and the scheduling routine is being executed. Before starting the scheduling of worker threads, scheduler needs to query a list of currently available/ready worker threads to be run by dequeue_completion_list_items() which calls corresponding function in kernel space. Worker thread scheduling and execution is performed by iterating over the list of ready worker threads and invoking execute_worker_thread(). The corresponding function in kernel space switch_to_worker_thread() performs context switching operation from scheduler to worker thread context. Once worker thread finishes its routine, worker_thread_yield() is called with specified yield reason which determines whether worker thread is pausing or finishing. Similarly to worker thread execution, the context switching from worker thread back to scheduler is carried out on worker thread yield in kernel space by switch_back_to_ums_thread(). Finished scheduling routine calls exit_ums_scheduling_mode() to invoke convert_from_ums_thread() on the kernel space to convert scheduler back to pthread. And after that each converted from scheduler thread calls exit_ums() to synchronize the execution of schedulers.

Results

The implementation was built on the following environment:

Operating System: Ubuntu 20.04.2 LTS
Kernel: Linux 5.11.0-40-generic
Architecture: x86-64

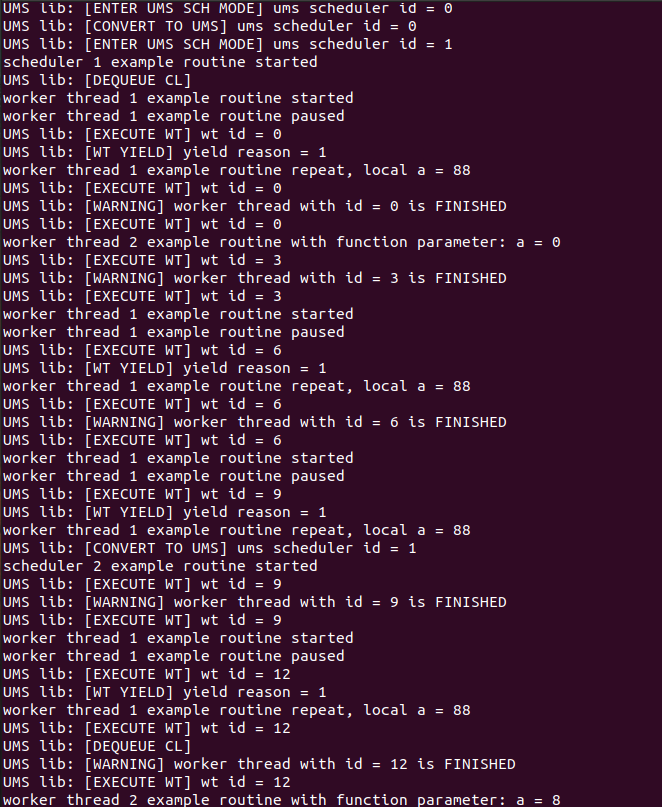

The log information examples of the library and module are shown the following pictures: library log

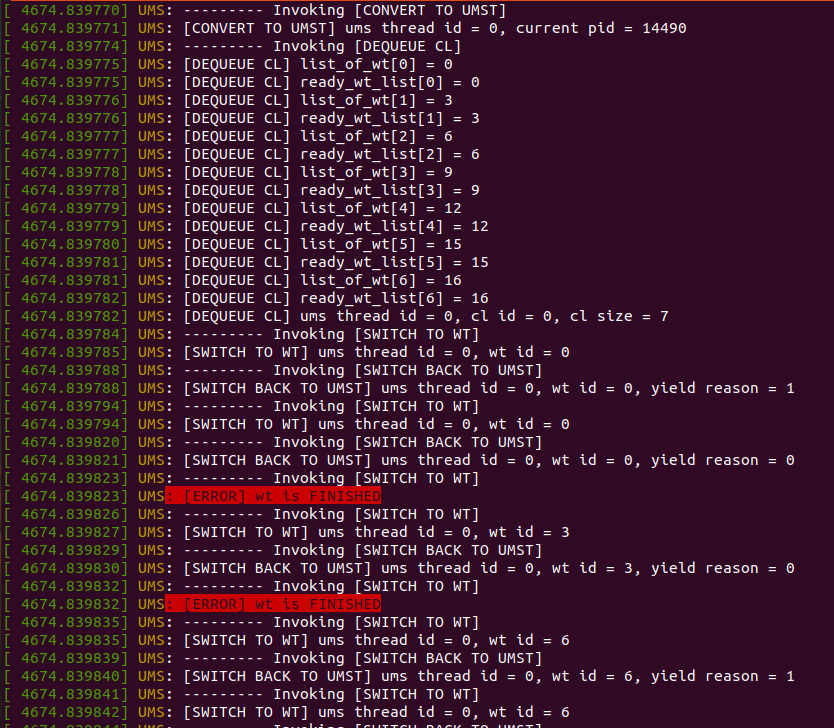

module log1

module log2

The measured benchmark sample of the project is the average time needed for a scheduler thread to switch a worker thread which is in range between 150-250 ms.

The process of executing the worker threads is straight-forward and not optimized completely. Scheduler routine in user space queries(dequeue) a list of available and ready to run worker threads and stores it locally. Thus, when 2 scheduler share a completion list, it is not updated globally. Scheduler updates a local list during the execution attempt of a worker thread, specifically when it sees that the status of the worker thread is finished. Thus, there might be cases when one scheduler finishes the whole list and another scheduler is just trailing behind and updating local list. Another case to be noted and reported is when one scheduler finishes the list even before the second scheduler has started.
